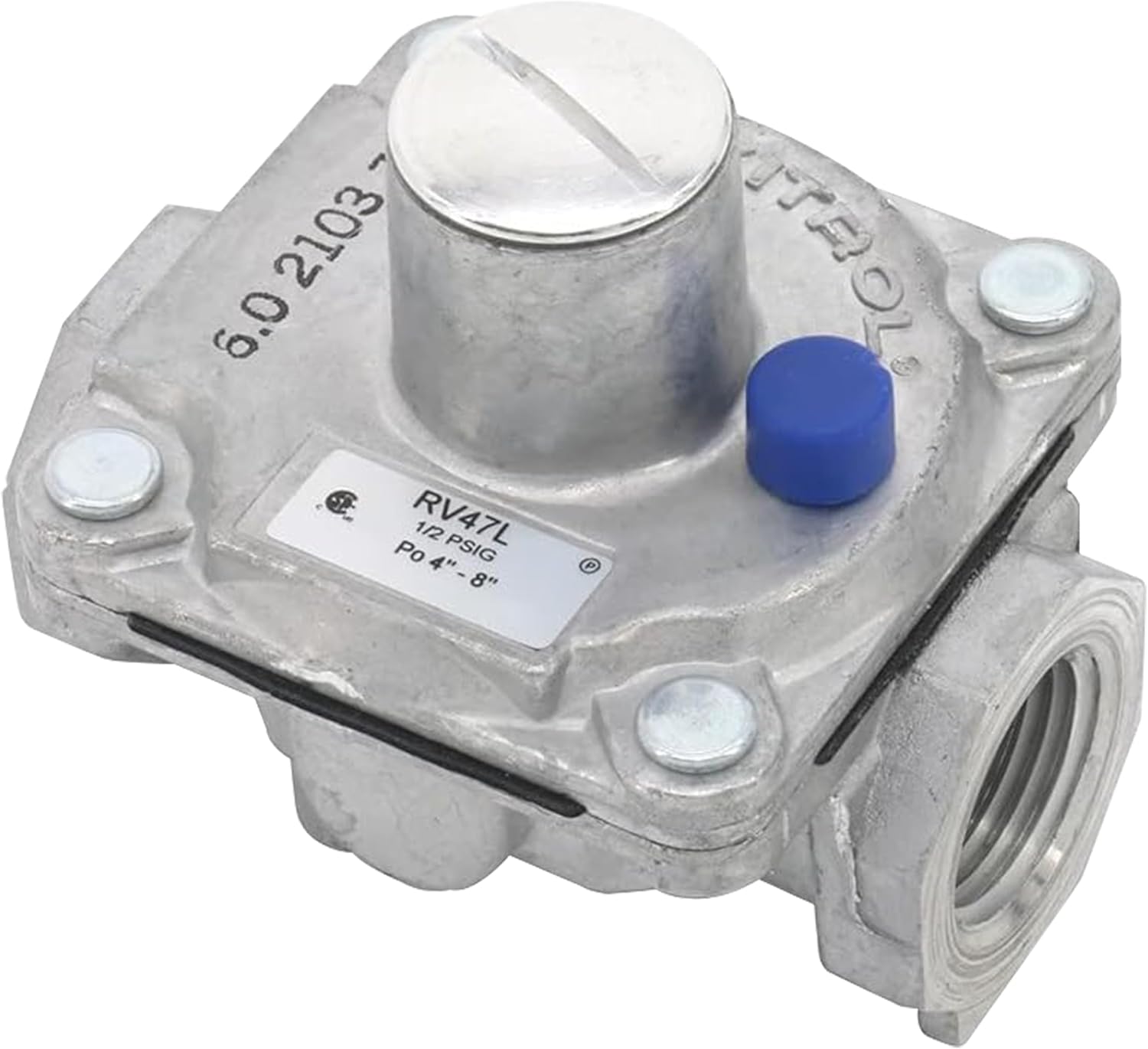

Maxitrol RV47L Natural Gas Pressure Regulator, 1/2" FPT Thread, 13/16" In and Out Opening, 1/2 PSIG In, 4" - 8" WC Out

Description:

About this item:

  • GAS TYPE & PRESSURE - Gas Type: Natural Gas (NG). Inlet gas pressure: 1/2 PSI. Outlet pressure range: 4" - 8" Water Column
  • PIPE THREAD SIZE - 1/2" Inlet & 1/2" Outlet FPT GAS PIPE. Make sure you measure the gas pipe or regulator opening as 13/16 inch.
  • CAUTION - This regulator has 13/16" openings for 1/2" gas pipes. The 1/2" gas pipe means interior diameter 1/2" but outside diameter is 13/16".
  • MARKING - Model: RV47L, Marking: 1/2 PSIG, Po 4" - 8". Inlet pressure 1/2 PSI. Adjustable outlet pressure 4" - 8" Water Column.
  • OPERATE TEMPERATURE - 32°F - 225°F (0°C - 107°C). Overall Dimension: 2-7/8” W x 2-1/4” D x 2-1/2” H. This is a small size regulator. Refer to pictures for detailed dimensions.


    • PRODUCT INFO:

    • Natural Gas, 1/2" FPT Gas IN/OUT, 4-8" WC
    • MAXITROL RV47L-44-0007
    • For NIECO broiler series: 300, 400, 500, 600, 800, 900.


    Attention:
    • NOTE: GAS PRESSURE REGULATORS WILL NOT TURN OFF THE FLOW OF GAS.
    • The pipe fittings for this regulator are based on NPT pipe threads - dimensions according ANSI/ASME B1.20.1 standards.
    • Install the regulator properly with gas flowing as indicated by the arrow on the casting.
    • *NOTE - Do not install the regulator too close to the heating equipment or use in very cold environment. Heat or cold can change the resistance of the spring inside the regulator.


    How to find the correct pipe thread size

    • WARNING: The NPT thread size is NOT referring to the size of the thread itself!
    • The plumbing industry standard for the pipe sizes is NOT always as straightforward as measuring the pipe.
    • Measuring the pipe will often mislead you into choosing the wrong pipe size.
    • The "pipe thread size" is measured and based on the inside of the pipe.
    • A lot of people measured the thread / the opening for the thread / outside diameter of the pipe, and thought that was the thread size. It was WRONG.
    • The NPT thread is referring to the Interior Diameter of the pipe.

    Review:

    5.0 out of 5

    100.00% of customers are satisfied

    5.0 out of 5 stars Working well…Easy install

    R.H. · November 2, 2024

    Easy to install, New Weber grill works well! Also, great price!

    5.0 out of 5 stars Quality part and it works well

    J.G. · December 18, 2024

    I was in a bind, my stove top wouldn't light....I checked the original maker's price and it was out of sight....this has been in since it arrived and the stove works with the flames as good as ever...

    5.0 out of 5 stars Perfect when converting propane gas grill to Natural gas

    A.C. · September 11, 2024

    Great value and small size for 1/2" npt pipe, 1/2 psi regulator

    5.0 out of 5 stars Great Replacement

    E.G. · November 13, 2024

    Our 18 yr old natural gas grill stopped heating past 300 degrees. U as big the part number on the old one, we found a new one with the same part number. Got it installed and our grill is working great again.

    5.0 out of 5 stars Natural gas valve

    A.C. · June 14, 2024

    Worked great , no problems

    5.0 out of 5 stars Good replacement

    B.M. · March 30, 2024

    Work like a charm with my weber grill. The old one only released the Gas at a slow rate.

    5.0 out of 5 stars Adjustable WC (NG flow rate) solves problem

    G.Q. · November 27, 2023

    Replacing a gas log fireplace, and the new one did not include a regulator. The instructions called for at least 5Wc and no more than 9WC. Although it is not marked, this device easily adjusts ( you will need a tester to verify exact WC).

    5.0 out of 5 stars Bad description decent part 4”-8”WC

    A.C. · January 14, 2024

    Wrong part and description it’s 4”-8”wc I needed 3.5” but it was two day delivery so oh well, makes me sad

    Pour un poêle de camps de chasse

    G. · July 11, 2021

    Très apprécié
