1/2" Natural Gas and Liquefied Interchange Pressure Regulator, Natural Gas Pressure Regulator with 2 Brass 1/2" NPT conversion adapter for NG/LPG Applications

Description:

About this item:

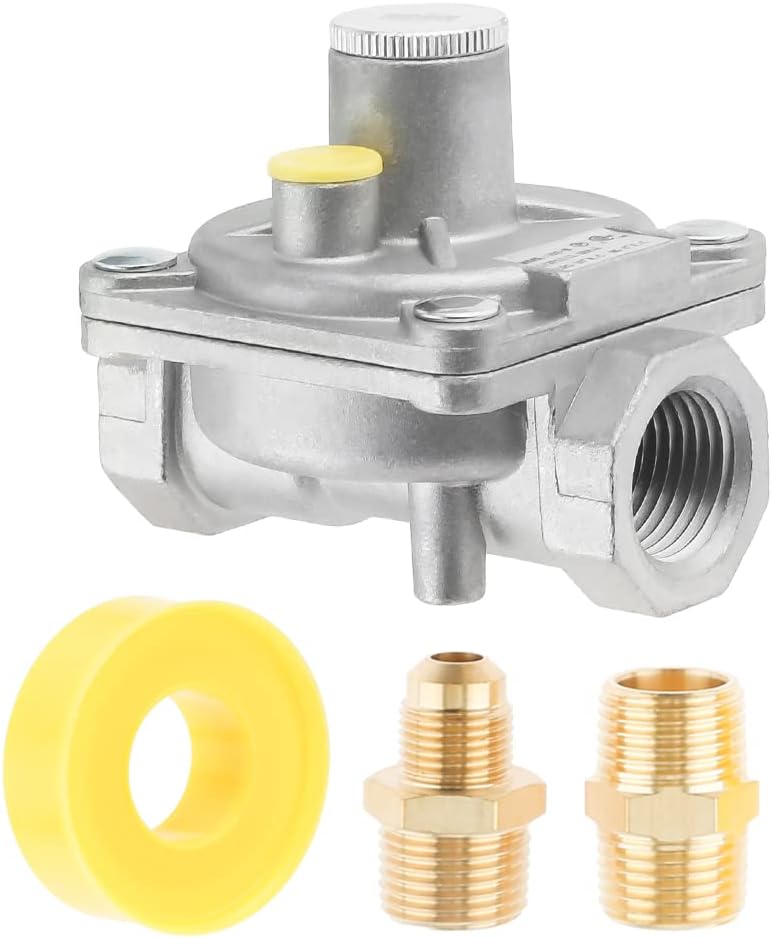

  • 【SPECIFICATIONS】The 1/2 PSI gas regulator of the 102-B model fit for natural gas and liquefied gas valves. Both the inlet and outlet of the valve are 1/2" FPT pipe threads. We additionally furnish a brass 1/2" NPT conversion adapter-1/2" NPT male x 3/8" flare male. 1/2" NPT male x 1/2" NPT male. Plus joint thread tape.
  • 【INSTRUCTIONS FOR USE】When the LPG gas regulating valve is used: LP inlet pressure is 2.74Kpa(11"w.c), outlet pressure is 2.45~2.55 kpa(10"w.c), and gas flow rate is 30L/min; when the natural gas regulating valve is used: LP inlet pressure is 1.74Kpa(7"w.c). Outlet pressure is 0.95~1.05 kpa(4"w.c), flow rate: 50L/min
  • 【CONVENIENCE USE】This gas regulator is adjustable, which can be used for natural or propane application, but original setting is LP state. Please unscrew the 20.3mm diameter aluminum knob in the gas valve to switch the direction of the LP/NG copper shaft core. It is more simple, fast, and convenient.
  • 【PERATE TEMPERATURE】32°F-225°F (0°C-107°C). Do not install the regulator too close to the heating equipment or use in very cold environment. Heat or cold can change the resistance of the spring inside the regulator. And the gas pressure regulator will not turn off the flow of gas.
  • 【APPLICATION】This natural gas pressure regulator fit for natural gas grills, heater, oven, gas welding equipment, NG gas and liquefied interchange pressure regulator, etc.
  • Review:

    4.2 out of 5

    84.00% of customers are satisfied

    5.0 out of 5 stars Parts for natural gas hook uo

    D. · October 31, 2024

    Worked perfect on our New generator. To hook the natural gas to it. Love it.,

    5.0 out of 5 stars Worked like it's supposed to

    C. · May 17, 2024

    Maybe people don't switch the threaded piece inside for propane or natural gas. Not sure why there are allot of returns worked for me.

    5.0 out of 5 stars As expected

    G.C. · April 19, 2024

    Hooked up to house LP line after adding a 2nd stage regulator and this little unit does the trick feeding a Weber Summit 670 grill.

    5.0 out of 5 stars Pressure measurement

    H. · March 8, 2023

    Make sure you open it up and see if it's set to propane or natural gas. I thought that it was set to natural gas and installed it on a BBQ only to find out it was actually set to propane instead of natural gas. There is a huge difference in the 2 pressures and when I turned the unit on it whistled so loud that it was annoying to be within 10 ft of the BBQ. I checked it out and set it to the right pressure and it works flawlessly.

    5.0 out of 5 stars Sturdy

    M.R. · March 13, 2024

    Works well on a heartland 30odk. Instructions suck but if you have a clue then you can figure it out

    5.0 out of 5 stars Great product

    I.A.a. · January 17, 2024

    It was just as it was function to do.

    1.0 out of 5 stars Missing inner copper core piece!

    D.J. · December 5, 2024

    Missing inner copper core piece to switch back and forth from LP to natural gas!

    5.0 out of 5 stars Made it easy to adapt my NG grille to be convertible between NG and Propane.

    K.H. · October 2, 2023

    Made it easy to adapt my NG grille to be switchable between NG and Propane. Reminder: you must change out your gas jet orifices (NG or Propane)

    Good quality, wrong unit

    R.O. · October 6, 2024

    This unit is a good value, I just ordered the wrong size. I went with 1/2 inch when what I needed was 3/8. Easy return.

    You may need an extra adapter to use... and you need to test regulator is functioning correctly

    A. · July 18, 2024

    I needed this regulator for a converted propane>natural gas BBQ (orifices changed and already have the quick connect and gas hose to connect to the regulator/BBQ using a female 3/8 FIP connector). I am essentially breaking this connection to the BBQ to insert the NG regulator.There are TWO (2) problems with this regulator.1. You need an additional adapter to insert it between the supply and BBQ. Specifically, you require a female 1/2" FPT/FIP to female 3/8" FPT/FIP adapter (connected to the male 1/2 NPT/MIP adapter threaded on the OUT connection of the regulator. It would be better if this product came with an extra adapter to insert into a 3/8 connection.2. Once I made the necessary connections, and confirmed the regulator was in the NG configuration, when testing the BBQ, with one burner on, I was getting only just enough gas pressure to light the burner, however adjusting to LOW cause it to flare out. This can be dangerous as gas can potentially stay on (unless control has safety ability to shut-off) and not be ignited. When I tried 2+ of 5 burners, there was not enough gas pressure. The regulator is faulty, not working correctly.Returning for a refund.
